運用 UIKit 的 Compositional Layout 實作靈活排版與組合效果

一般來說，在製作 CollectionView 時通常都是 Cell “一個個” 往右或往下堆疊，如果我要三個三個往右堆疊怎麼辦？又或者需求很奇葩，要一個大 Cell 後面接兩個小 Cell ?（巢狀結構）這樣怎麼辦

AppStore

總不能直接坐三行 CollectionView吧？這時就可用 Compositional Layout

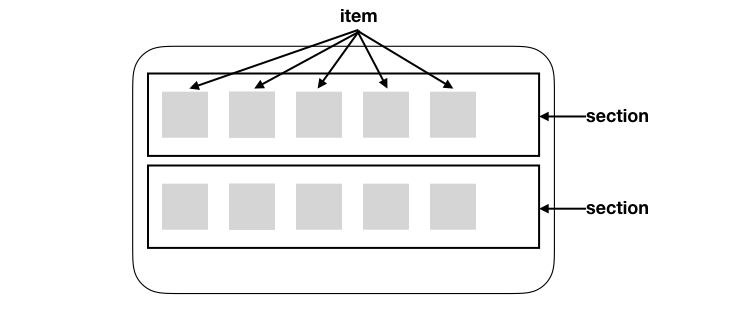

基本的 CollectionView 的 layout架構

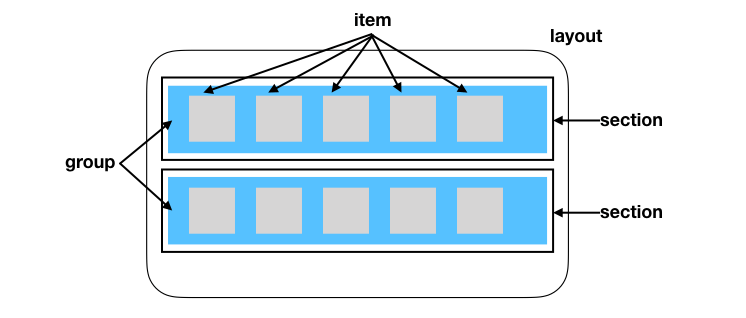

Compositional Layout 的架構

因為多了一個 group 物件，這個物件依照陣列方式塞入多個 Item，而 group 可以再依照排列方式：垂直 或 平行 的方式去排列，就可以達成很多排列效果 。

程式碼：Item 垂直相疊的橫向滾動

lazy var collectionViewLayout: UICollectionViewLayout = {

    // items
    let itemSize1 = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(30))
    let item1 = NSCollectionLayoutItem(layoutSize: itemSize1)

    let itemSize2 = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(60))
    let item2 = NSCollectionLayoutItem(layoutSize: itemSize2)

    let itemSize3 = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(90))
    let item3 = NSCollectionLayoutItem(layoutSize: itemSize3)

    // group
    let groupSize = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(190))
    let group = NSCollectionLayoutGroup.vertical(layoutSize: groupSize, subitems: [item1, item2, item3])
    group.interItemSpacing = .fixed(5)
    group.edgeSpacing = NSCollectionLayoutEdgeSpacing(leading: nil, top: nil, trailing: .fixed(5), bottom: nil)

    // section
    let section = NSCollectionLayoutSection(group: group)

    // fixed：指定固定的距離
    // flexible：指定一個可伸長的最小距離

    // header
    let headerSize = NSCollectionLayoutSize(widthDimension: .fractionalWidth(1),
                                        heightDimension: .absolute(40))
    let headerItem = NSCollectionLayoutBoundarySupplementaryItem(layoutSize: headerSize,
                                                                 elementKind: UICollectionView.elementKindSectionHeader,
                                                                 alignment: .top,
                                                                 absoluteOffset: CGPoint(x: 0, y: -5))

    // footer
    let footerSize = NSCollectionLayoutSize(widthDimension: .fractionalWidth(1),
                                            heightDimension: .absolute(40))
    let footerItem = NSCollectionLayoutBoundarySupplementaryItem(layoutSize: footerSize,
                                                                 elementKind: UICollectionView.elementKindSectionFooter,
                                                                 alignment: .bottom,
                                                                 absoluteOffset: CGPoint(x: 0, y: 5))

    // 將header指定給section
        section.boundarySupplementaryItems = [headerItem, footerItem]

    // 畫面滾動方式
    section.orthogonalScrollingBehavior = .continuous
    //        none：顧名思義，就是不會有垂直向的滾動（預設值）
    //        continuous：連續的滾動
    //        continuousGroupLeadingBoundary：連續的滾動，但會最後停在 group 的前緣
    //        paging：每次會滾動跟 CollectionView 一樣寬（或一樣高）的距離
    //        groupPaging：每次會滾動一個 group
    //        groupPagingCentered：每次會滾動一個 group，並且停在 group 置中的地方

    section.contentInsets = NSDirectionalEdgeInsets(top: 5, leading: 5, bottom: 5, trailing: 5)

    // CompositionalLayout
    let layout = UICollectionViewCompositionalLayout(section: section)

    return layout
}

override func viewDidLoad() {
    super.viewDidLoad()

    myCV.collectionViewLayout = collectionViewLayout
    myCV.dataSource = self
    myCV.delegate = self
    myCV.register(myCollectionViewCell.self, forCellWithReuseIdentifier: myCollectionViewCell.identifier)
    myCV.register(UICollectionReusableView.self, forSupplementaryViewOfKind: UICollectionView.elementKindSectionHeader, withReuseIdentifier: "HeaderView")
    myCV.register(UICollectionReusableView.self, forSupplementaryViewOfKind: UICollectionView.elementKindSectionFooter, withReuseIdentifier: "FooterView")

}

// MARK: - UICollectionViewDelegate

extension ViewController: UICollectionViewDelegate {

}

extension ViewController: UICollectionViewDataSource {
    func collectionView(_ collectionView: UICollectionView, numberOfItemsInSection section: Int) -> Int {
        return 30
    }

    func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
        guard let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "myCollectionViewCell", for: indexPath) as? myCollectionViewCell else {
            return UICollectionViewCell()
        }

        cell.backgroundColor = .systemBlue

        return cell
    }

    // 當forSupplementaryViewOfKind不同時產生對應的CollectionReusableView
    func collectionView(_ collectionView: UICollectionView, viewForSupplementaryElementOfKind kind: String, at indexPath: IndexPath) -> UICollectionReusableView {
        var reusableView = UICollectionReusableView()

        if kind == UICollectionView.elementKindSectionHeader {

            // Header
            reusableView = collectionView.dequeueReusableSupplementaryView(ofKind: UICollectionView.elementKindSectionHeader, withReuseIdentifier: "HeaderView", for: indexPath)
            reusableView.backgroundColor = .gray

            let label = UILabel(frame: CGRect(x: 0, y: 0, width: UIScreen.main.bounds.width, height: 40))
            label.textAlignment = .center
            label.text = "Header"
            label.textColor = .black
            reusableView.addSubview(label)

        }else if kind == UICollectionView.elementKindSectionFooter {

            // Footer
            reusableView = collectionView.dequeueReusableSupplementaryView(
                                            ofKind: UICollectionView.elementKindSectionFooter,
                                            withReuseIdentifier: "FooterView",
                                            for: indexPath)
            reusableView.backgroundColor = .cyan

            let label = UILabel(frame: CGRect(x: 0, y: 0, width: UIScreen.main.bounds.width, height: 40))
            label.textAlignment = .center
            label.text = "Footer"
            label.textColor = UIColor.black
            reusableView.addSubview(label)
        }
        return reusableView
    }
}



• 4~11行是將每個 item 設置好大小，注意是用 NSCollectionLayoutSize
• 15行是敘述將每個 item 放進的排列方式
• 16行 裏面每個 item 互相的間隔， 記得這個要將這個間隔算近 group

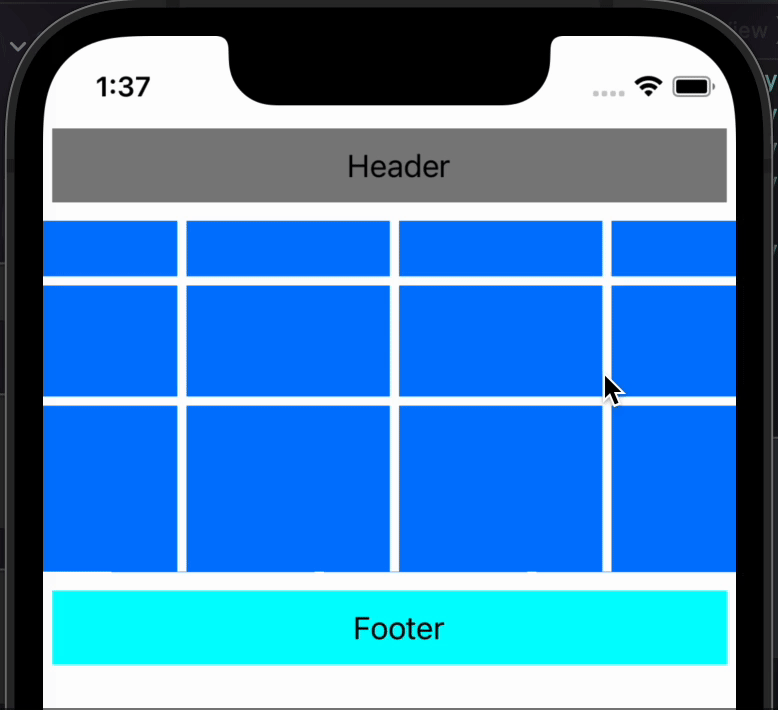

效果：

Item 垂直相疊的橫向滾動（像AppStore）

程式碼：巢狀結構（就只列出不一樣的地方）

// items
let itemSize1 = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(30))
let item1 = NSCollectionLayoutItem(layoutSize: itemSize1)

let itemSize2 = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(60))
let item2 = NSCollectionLayoutItem(layoutSize: itemSize2)

let itemSize3 = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(95))
let item3 = NSCollectionLayoutItem(layoutSize: itemSize3)

// subGroup
let subGroupSize = NSCollectionLayoutSize(widthDimension: .absolute(110),heightDimension: .absolute(95))

let subGroup = NSCollectionLayoutGroup.vertical(layoutSize: subGroupSize, subitems:  [item1, item2])

// item在group內的間距
subGroup.interItemSpacing = .fixed(5)

// group
let groupSize = NSCollectionLayoutSize(widthDimension: .absolute(225),heightDimension: .absolute(95))

let group = NSCollectionLayoutGroup.horizontal(layoutSize: groupSize, subitems: [item3, subGroup])

group.interItemSpacing = .fixed(5)

group.edgeSpacing = NSCollectionLayoutEdgeSpacing(leading: nil, top: nil, trailing: .fixed(5), bottom: nil)

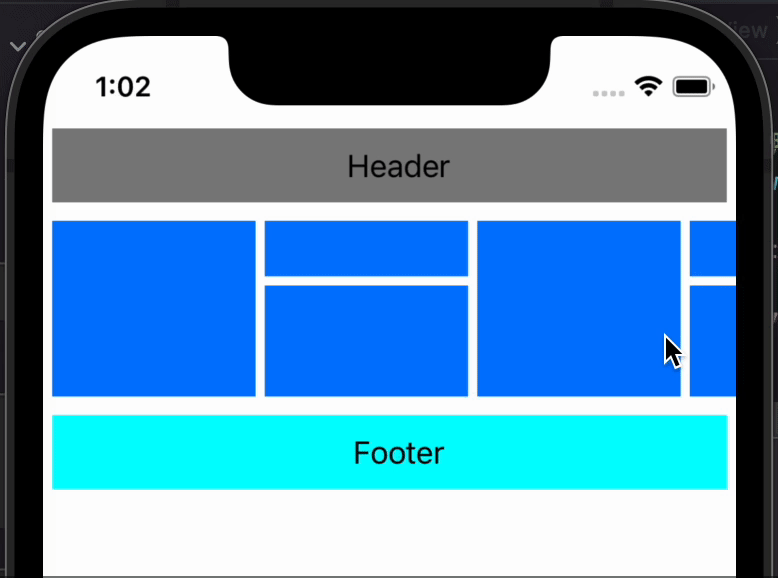

效果：

巢狀Cell
